HOW TO ADJUST THE SETTINGS
_______________
This video shows you how to adjust the hot water temperature, the pre-infusion pressure and the spring pressure on your Spiritello.
NURTURE YOUR SPIRITELLO
An overview of videos, manuals, parts list, kit contents and tool insights is shown below.
HOW TO CLEAN THE SPIRITELLO
_______________
Simple tutorial on how to clean the Spiritello.
This video supports the detailed explanation in the manual on how we advise to clean your espresso machine.
HOW TO SET YOUR SPIRITELLO TO AUTO STOP BY PRESSURE
_______________
This video shows you how to activate the – auto stop by pressure – function on your Spiritello.
HOW TO SET YOUR SPIRITELLO TO AUTO STOP BY WEIGHT
_______________
This video shows you how to activate the – auto stop by weight – function on your Spiritello.
HOW TO INSTALL THE SPIRITELLO
_______________
Simple tutorial on how to install the Spiritello. This video supports the detailed explanation in the installation manual on how to set-up your espresso machine.
HOW TO SERVICE THE LEVER GROUP OF THE SPIRITELLO
_______________
Simple tutorial on how to service the lever group of the Spiritello.
This video supports the detailed explanation in the user manual on how we advise to service your lever espresso machine.
DOWNLOADS
The technical manual is available for all trained mechanics.
To request a copy, send an email to support@keesvanderwesten.com.
We kindly ask to include:
1. Your name (additional company name is welcome)
2. the serial number of the machine
KIT CONTENT
| K00709-05 | Group screen extractor; s.st. | 1x | ||
| K00824-00 | Group shower screen; s.st., KvdW logo | 2x | ||
| K00826-00 | Group ring; 8.0mm (Arinca) | 2x | ||
| K00832-00 | Portafilter circlip for filter basket | 2x | ||
| K00740-00 | Blind filter | 1x | ||
| K00706-00 | Grouphead cleaning brush | 1x | ||
| K00566-03 | V-ring 52x40x7mm; Viton (Idrocompresso piston gasket | 2x | ||
| K03402-01 | Spring adjusting tool Idrocompresso | 2x | ||
| K03823-00 | Outlet pipe adaptor 3/8 to drain coffee and steam boilers; Spiritello | 1x | ||
| K01702-00 | O-ring Ø9.1×1.6mm; FKM 75 ShA | 2x | ||
| K03135-00 | O-ring Ø75×2.5mm; FKM; FDA; top of group, standard size | 1x | ||
| K04000-00 | Positioning tool for switch mechanism adjustment; POM 1mm; Idrocompresso | 1x | ||
| K04004-00 | Allen wrench 4mm; with ball end | 1x | ||
| K04005-00 | Allen wrench 5mm; with ball end | 1x | ||

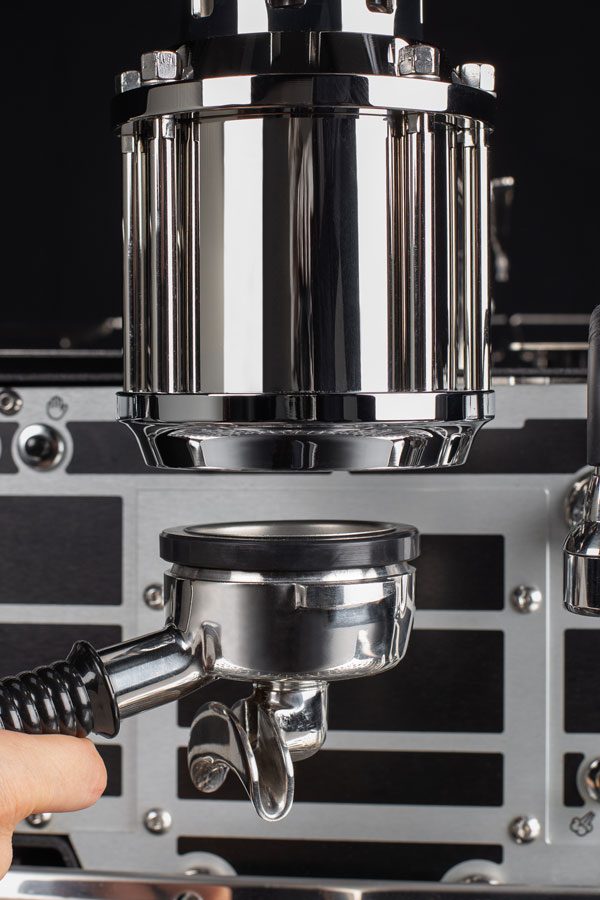

GROUP SCREEN EXTRACTOR
1. Lever the group screen from the group. Make sure to position tool in ridge.
2. Place rounded side of group ring upwards.
3. Twist the filter holder in the group to remount group screen and ring.

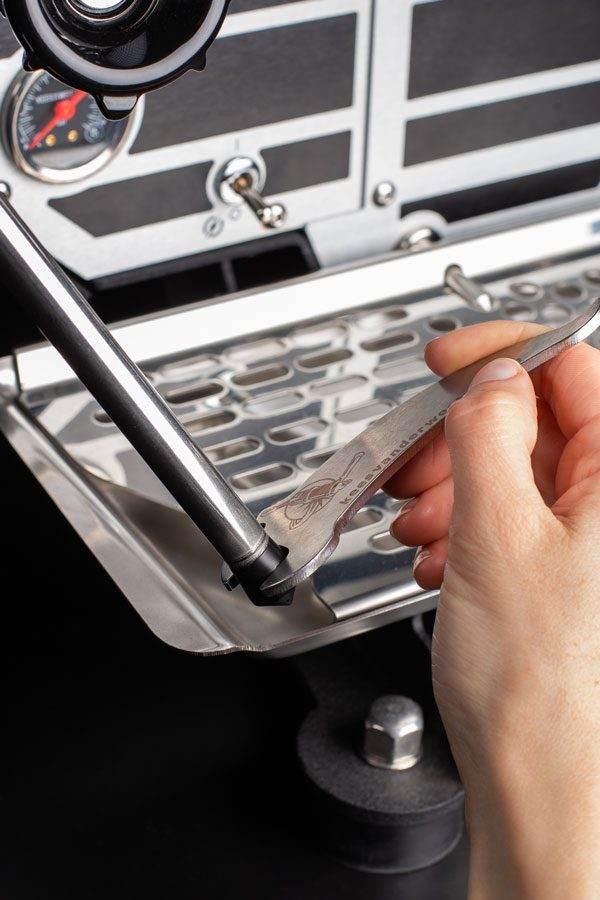

4. Unscrew the steam tip with the extractor tool.
